About SMOK G-PRIV 220 With TFV8 Big Baby Starter Kit
SMOK is a vaping company, which was established in 2010 and is based in Shenzen that has taken the vaping world by storm. This company is known for their innovation, resulting in the first atomizer having dual coils. The company is highly regarded as being the most advanced in the industry, and is known for their R&D team, which is meticulous in coming up with new advances.

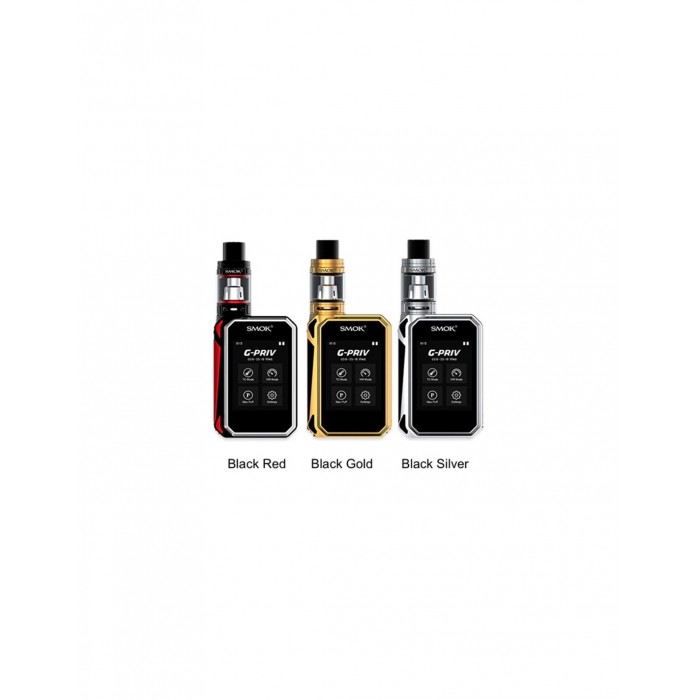

The G-PRIV 220 comes with a touch screen of 2.4 inches and this makes it easy to manage the vaping data. The device runs using two 18650 batteries and produces a maximum output of 220 watts and runs in VW/TC modes. The big fire key comes provides a good grip and amazing visual effect. This device can be operated using a smartphone. The G-PRIV 220 works well in combination with the TFV8 baby tank. The G-PRIV 220 kit or mod can be procured by users according to their needs.
Product Instructions
Parameters
SMOK G-PRIV 220 Box Mod
Size: 85 x 58.5 x 28mm
Voltage Range: 0.35 - 8V
Power Range: 1 -220W
Battery: 2 x 18650 batteries (not included)
Resistance Range: 0.1 -3ohm (VW) / 0.06 -2ohm (TC)
Temperature Range: 200F--600F/100℃--315℃
Battery: dual 18650 batteries (not included)
SMOK TFV8 Big BABY Tank
Size: 24.5 x 56mm
Capacity: 5ml
Material: SS
Thread: 510
SMOK G-PRIV 220 With TFV8 Big Baby Starter Kit contains
- 1 x G-PRIV 220 MOD
- 1 x TFV8 Big Baby Tank
- 1 x V8 Baby-X4 Core (pre-installed)
- 1 x V8 Baby-T6 Core
- 1 x Replacement Glass Tube
- 1 x USB cable
- 1 x User Manual
- Spare parts
Simple packing. Customary packing from the factory, the packing is subject to change without notice.
- No e-juice or 18650 batteries is included. You shall purchase them separately.
- 510 thread.
- You can buy Baby-T8 Octuple Core, Baby-T6 Sextuple Core, Baby-X4 Quadruple Core, Baby-Q2 Dual Core.
Features
2.4" super touch screen
220W output power
Shatter-resistant screen
Upgradeable screen locked button
Virtual up/down button
Delrin drip tip
Adjustable airflow system
Operation Guide
How to fill e-Juice:
1. Hold the tank with one hand, and use another one to press top cap and move it clockwise.
2. Add e-liquid through the slot, and pay attention not to drip in the central airflow;
3. Close the cap carefully and firmly. Then let it stands for several minutes to get the organic cotton completely saturated.
How to build the RBA:
1. Before starting make sure your hands are clean.
2. Taking RBA deck apart.
3. Installing and positioning the pre-wrapped coil. Place the coil between the posts and wrap the ends around the screws and tighten up, once all in place make sure the coil is fixed in the center and lined up with the air hole, and also make sure the coil is NOT touching the base.
4. Cutting the ends of wire off.
5. Cutting a strip of cotton and make sure it's not too much and not too less.
6. Inserting the cotton, and placing it in the middle.
7. Cutting the cotton at an angle and make sure it's not too short and not too long.
8. Wet the coil with your e-liquid and adjust the cotton.
Warning: Coils must be checked for resistance before they are fired on a device, and re-checked periodically to ensure the resistance remains the same.
Guarantee
6 months for G-PRIV 220 MOD. Please check guarantee policy.
Click download to get the certificate: CE, ROHS.
