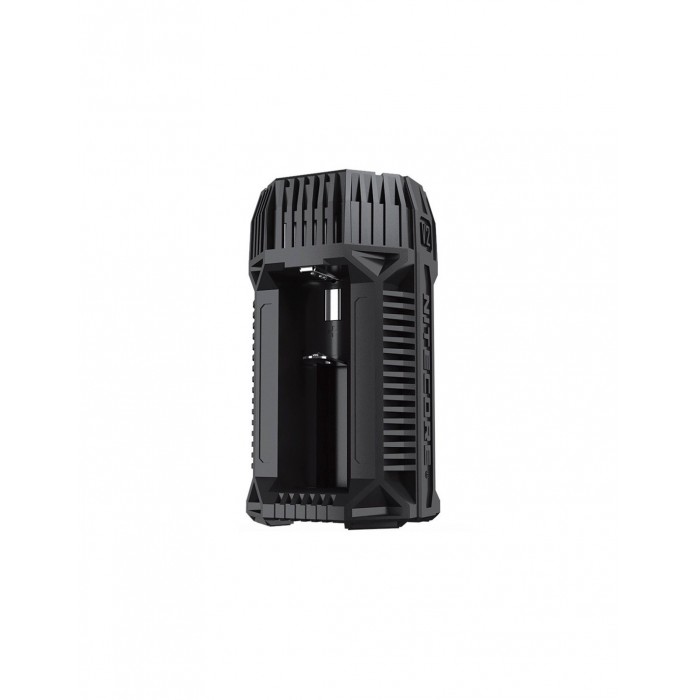

About Nitecore V2 In-car 3A Quick Charger
The Nitecore Charger is offered at the most economical price with amazing quality. You can enjoy the best vaping experience by choosing VapeNico to purchase the Nitecore charger for an e-cigarette.
Specification
Parameters
Dimensions: 67mm x 65mm x 125mm
Material: PC
Input: DC 12V 42W(MAX)
Output: Battery: 4.2V±1% / 3A*2 (MAX) 1.48V±1% / 2A*2 (MAX)
USB: 5V±5% 1A*2 / 2.1A*1 (MAX)
Compatible with:
Li-ion/IMR: 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500,
17650, 17670, 18350, 18490, 18500, 18650, 22500, 22650, 25500,
26500, 26650,
Unprotected batteries: 17700, 18700, 20700, 21700, 22700, 26700
Ni-MH(NiCd): AA,C
Feature
In-car quick 3A charger
Capable of charging 2 batteries simultaneously
Compatible with Li-ion/Ni-MH (NiCd) batteries
Three charging modes (CC/CV/-dV/dt)
Automatically detects battery power status and selects the appropriate charging mode
Charging current can be set manually by users
Automatically stops charging upon charging completion
Overtime charging protection
PID (Proportion Integration Differentiation) System controls the charging temperature
Activation for over-discharged protected batteries
Capable of recovering Li-ion rechargeable batteries
Cooling fins design for heat dissipation
Packing
Nitecore V2 In-car 3A Quick Charger contains
- 1 x Nitecore V2 In-car 3A Quick Charger
- 1 x In-car charging cord
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
Operation Guide
Operating Instructions
Connect to power source: connect one end of the in-car charging cord/adapter into the V2, and the other end into the cigarette lighter or power socket.
Battery installation: The V2 has 2 slots to charge rechargeable batteries of varied sizes. Please make sure to insert batteries of supported types into both slots observing the polarity marks on each slot. The charger will not function if the battery is installed incorrectly. The 3 green LEDs above the slot will blink simultaneously to notify users the error.
Charging tips: During normal charging, the green LEDs will blink to indicate the charging progress; Upon charging completion, 3 LEDs will become steady; If the charger detects any error all 3 LEDs will blink to notify users.
Smart charging: The V2 will choose appropriate charging currents based on its intelligent detection of battery types and capacities. Manual charging current selection is also available. The V2 is compatible with: 3.7V Li-ion rechargeable batteries as well as 1.2V Ni-MH/Ni-Cd rechargeable batteries.
Default Charging Current
The default charging current is 1A. After fully charged, the voltage of Li-ion batteries is 4.2V±1% and the voltage of Ni-MH/Ni-Cd batteries is 1.48V±1%.
Selecting Charging Current
After power on, the V2 will automatically select 1A charging current. User can press the function switch to cycle through "1A-2A-3A". The blue LEDs on top of the V2 will illuminate to indicate the present charging current:
1. 1 blue LED represents the charging current is 1A;
2. 2 blue LEDs represent the charging current is 2A;
3. 3 blue LEDs represent the charging current is 3A.
Li-ion Battery Recovery
Upon insertion of a 0V IMR battery, all 3 green LEDs over the slot will blink together to indicate that the battery is non-rechargeable. In this situation, press and hold the function switch to enter recovery mode. One of the LEDs will go on to notify users. It is recommended to discard the battery if it fails to be recovered after several attempts.
Failing to do so may result in fire and explosion.
Overtime Charging Protection
The V2 will calculate the charging time of the battery in each slot separately. If the accumulated charging time exceeds ten hours, it will automatically terminate charging and all the green LEDs will go on. This is to prevent possible overheat or even explosion due to battery quality issue.
Anti-short Circuiting and Reverse Polarity Protection
If a battery is inserted with its polarity reversed or is short-circuited, 3 LEDs above that slot will blink to notify users.
PID (Proportion Integration Differentiation) System
The PID system will automatically regulate the charging temperature within the safety limit when charging in a large current.
USB Output
The V2 supports USB output during charging. The maximum output current is 2.1A.
Order Tips
- Attention:
1. Distributors / Wholesalers may have some risks to sell Nitecore products in Germany from exclusive distributor.
2. According to the factory's requirement, defective Nitecore products must be sent back to us for replacements. Thanks for your understanding. - You can select Li-on Batteries.
- You can download RoHS, EMC and FCC Certificates.
Guarantee
Guarantee period 3 months. Please check Guarantee Policy.
