About Joyetech Elitar Pipe TC Starter Kit
Joyetech is offering you electronic cigarette and e-liquid products too. They bring in a ton of VG and PG flavors too. Everything is easy to carry, and the company releases a plethora of e-cig kits for your convenience like Atopack Penguin, eVic VT, Primo and AIO, as well as Cuboid, UNIMAX and many others.
The elitar is considered to be an extremely elegant device built by Joyetech. The 75 W battery body also included to milliliter atomizer. There are TCR, Bypass, Power and TC modes. There is also a leak resistant cup design in TFTA format. The pipe is a true premium vaping component.
Product Instructions
Parameters
Size: 38.00mm (W) x 147.50mm (L) x 36.50mm (H)
Diameter for the atomizer: 22.00mm
Output mode: VW/TC(Ti, Ni, SS316)/Bypass/TCR(M1, M2, M3)
Output Wattage: 1-75W
E-liquid Capacity: 2.0ml
Resistance Range: 0.05-1.5ohm for TC/TCR mode; 0.1-3.5ohm for VW/Bypass mode
Temperature Range: 100-315°C/ 200-600°F

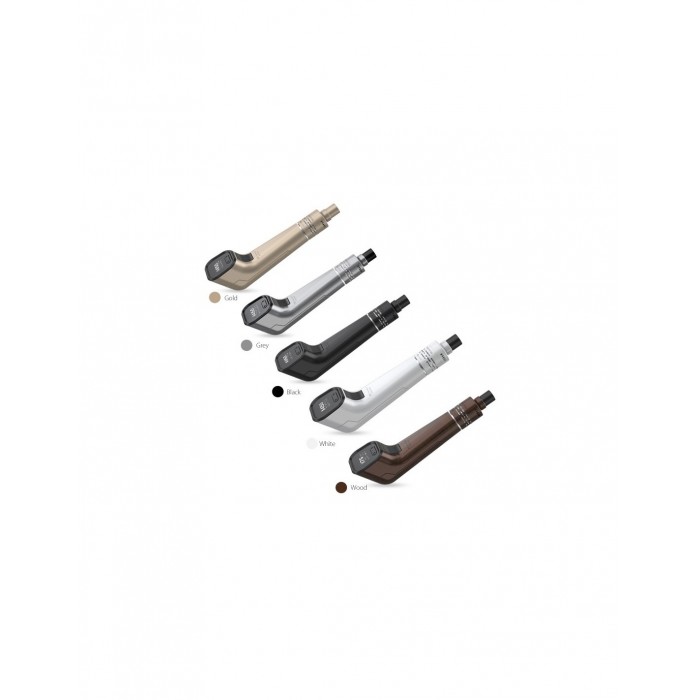

Colors: Gold, Grey, Black, White, Wood
Joyetech Elitar Pipe TC Starter Kit contains
- 1 x Elitar Battery (without cell)
- 1 x Elitar Atomizer
- 1 x BF SS316-0.5ohm DL.
- 1 x LVC Clapton-1.5ohm MTL.
- 1 x USB Cable
- 1 x User Manual
- 1 x Warranty Card
- 1 x Warning Card
Simple packing. Customary Packing from the factory, the packing is subject to change without notice.
- It doesn't come with liquids or 18650 battery, you shall buy it separately.
- Compatible with BF Replacement Coil and LVC Clapton MTL Head.
- You can download certificates.
Features
Classic combines with technology
Simple and clear
Integrated design with premium finish
Top filling and top airflow control
Replaceable battery and magnetic cover
Innovative leak resistant cup design
Detachable and washable structure
Intelligent temperature control system with multiple modes
Firmware Upgradable
Multiple Atomizer Heads Can Be Applied
Exquisite spring loaded 510 thread
Operation Guide
How to assemble
1. Screw the top cap onto the airflow ring and put the mouthpiece onto the top.
2. Drip a few drops into the atomizer head and install it onto the vent pipe.
3. Install the above part with the atomizer tube then the whole Elitear atomizer tube is assembled.
Replace Atomizer Head
Unscrew the atomizer cap, the atomizer head (with natural cotton)is located on the cap, just unscrew it and replace and clean.
Note:
1. Please don't wash the head with watter. Simply scrub it with cotton or clean dry cloth.
2. Please drip at least 5 drops of e-juice to the atomizer head and vape for a few times in power-off condition before its first use to avoid dry burn.
e-Juice filling
Separate the atomizer from the battery, and unscrew the mouthpiece base from the atomizer cap. Inject the liquid into e-juice hole at the both sides.
Guarantee
3 months for Elita battery. Please check Guarantee Policy.
Click download to get certificate: EMC, FCC, LVD.
Note: We now need serial number to proceed after-sales service. Please kindly preserve the serial number of product if it's available.
