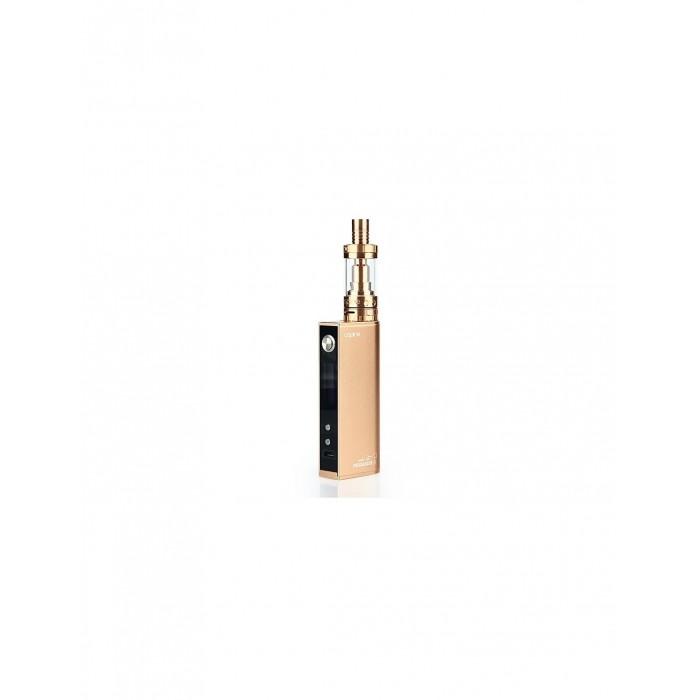

Aspire Odyssey Mini 50W TC Kit

  • Ex Tax: $119.50
  • Product Code: M00003754
  • Availability: In Stock
$119.50

About Aspire Odyssey Mini 50W TC KitAspire is a rising sensation in the world of e-cigarettes and is well on its way to becoming a well-known vaping b..

Available Options

About Aspire Odyssey Mini 50W TC Kit

Aspire is a rising sensation in the world of e-cigarettes and is well on its way to becoming a well-known vaping brand. Currently, aspire is focused on providing the high quality batteries and cartomizers. The most popular products of Aspire are Aspire CF battery series, and Nautilus Mini Series. Being a revolutionary in its field, Aspire is aiming to lead electronic cigarette to level higher than ever before.

Aspire's Odyssey is a special product that comes with features like adjustable airflow, usage of CL range of atomizers, and more. This mini kit also comes with a triton mini tank as well as the Pegasus mini MOD. This unique product is compatible with a wide range of coils and it also provides mechanical MODs of pure low-resistance that are designed while keeping simplicity, usability, and elegance in mind.

Aspire Odyssey Mini Kit with Triton Mini Tank

Product Instructions

It is a perfect match for Triton mini. All in the palm of your hand.

Parameters

stylish finish: Black/Silver/Gold

Black tank is plated using a nano vacuum plating process over top of the base stainless steel. This process meets FDA safety guidelines.

Capacity: 2 ml
Tank Size: 60 x 20mm
MOD Size: 86 x 36x 16mm
Voltage Output: 0.5V to 8.5V
Output Wattage: 1W-50W
TEMP Range: 100°C -315°C
Onboard charging: Micro USB(5V output)
Temperature control: compatible with Nickel coil and Titanium coil

3 kinds of coils available in this kit:
1. Ni200 coil: 0.15ohm,φ0.3mm. Spacing: 3.3mm
2. kanthal coil(15-20W): 1.2ohm,φ0.35mm. Spacing: 3.9mm
3. Clapton coil(13-16W): 1.8ohm,φ0.45mm. Spacing: 3.6mm
All triton mini coils are compatible with the Nautilus and Nautilus mini replacement atomizers.

Resistance Range:
1. 0.1ohm-3.0ohm in REG mode
If the resistance is 0.2ohm-1.4ohm, output wattage can reach 50W.
2. 0.2ohm-3.0ohm in Bypasss mode

Aspire Odyssey Mini comes with

  • 1 x Aspire Triton mini tank (1.8ohm Clapton coil pre-installed)
  • 1 x Pegasus mini MOD W/O Battery
  • 1 x 1.2ohm traditional kanthal BVC coil
  • 1 x Ni200 0.15ohm coil
  • 1 x Extra glass tube
  • 1 x User manual
  • 1 x USB chord
  • 1 x Warranty card

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

compact and stylish finishes
Top filling
MAX 50W output
0.1ohm~3ohm resistance range
Clapton coil, Ni200 coil,kanthal coil available
Changeable 18650 Li-battery
High Temperature/ Stepdown protection
Low resistance/ Short circuit/ Reverse battery protection

Operation Guide

Lock/Unlock the MOD: Click the fire button 5 times in 2s will lock the device; repeat it will unlock it.

Holding Battery:
The specialized arm, next to battery could fix battery. Also, it is the negative connection.

Top filling:

  • Note the arrow position and set to filling setting.
  • Simply remove the drip tip system
  • Squirt your favorite juice as below picture
  • Reset the arrow to vaping position
  • reattach the drip tip then enjoy

Shut off and light up screen:

pressing the fire button 3 times within 1.5 seconds will cause screen to shut off. The mod will still work though.

You could reactivate the device by pressing buttons 3 times again or by charging the mod, if mod is not in standby mode, screen can be lit up by simply reattaching a tank.

Protective features:

  • stepdown protection
  • high temperature protection
  • Short circuit protection
  • low resistance protection
  • reverse battery protection
  • automatic cutoff over 12 seconds

Adjust wattage:

In standard wattage mode,screen will allow you to switch between Bypass and Regulated.
Bypass(direct current from battery to atomizer, and cannot change wattage) or Regulated(The current is controlled and can adjust).

Warning:

  • When using a new atomizer, let the tank stand for 2 minutes, so the cotton can be saturated with juice before firing.
  • Do not let the tank become completely empty. Refill the tank to avoid dry burning or damage to the atomizer.

Aspire Odyssey Mini 50W TC Kit aspre

Order Tips

  • Aspire Odyssey Mini 50W TC Kit contains 510 thread, fits 510 thread atomizers.
  • You can select the vape juice here.
  • It doesn't include 18650 battery.
  • The Aspire Pegasus Charging Dock is also available.
  • compatible with most 510 drip tips

Aspire Odyssey Mini 50W TC Kit signed an

Guarantee

Please check Guarantee Policy.

Guarantee period: 3 months for MOD, no warranty for the rest spare parts.
